Hardened Industrial Gigabit PoE+ Injector 12-48VDC Input (30W)
Hardened Industrial Gigabit PoE+ Injector 12-48VDC Input (30W)
Couldn't load pickup availability
Overview:
The LNK-INJ300 product is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
Features:
-
1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port(Data + Power)
-
Support IEEE802.3at Power over Ethernet(PoE+) Power Sourcing Equipment
-
Support 10/100/1000Base-TX, extensive LED indicators for PoE diagnostics
-

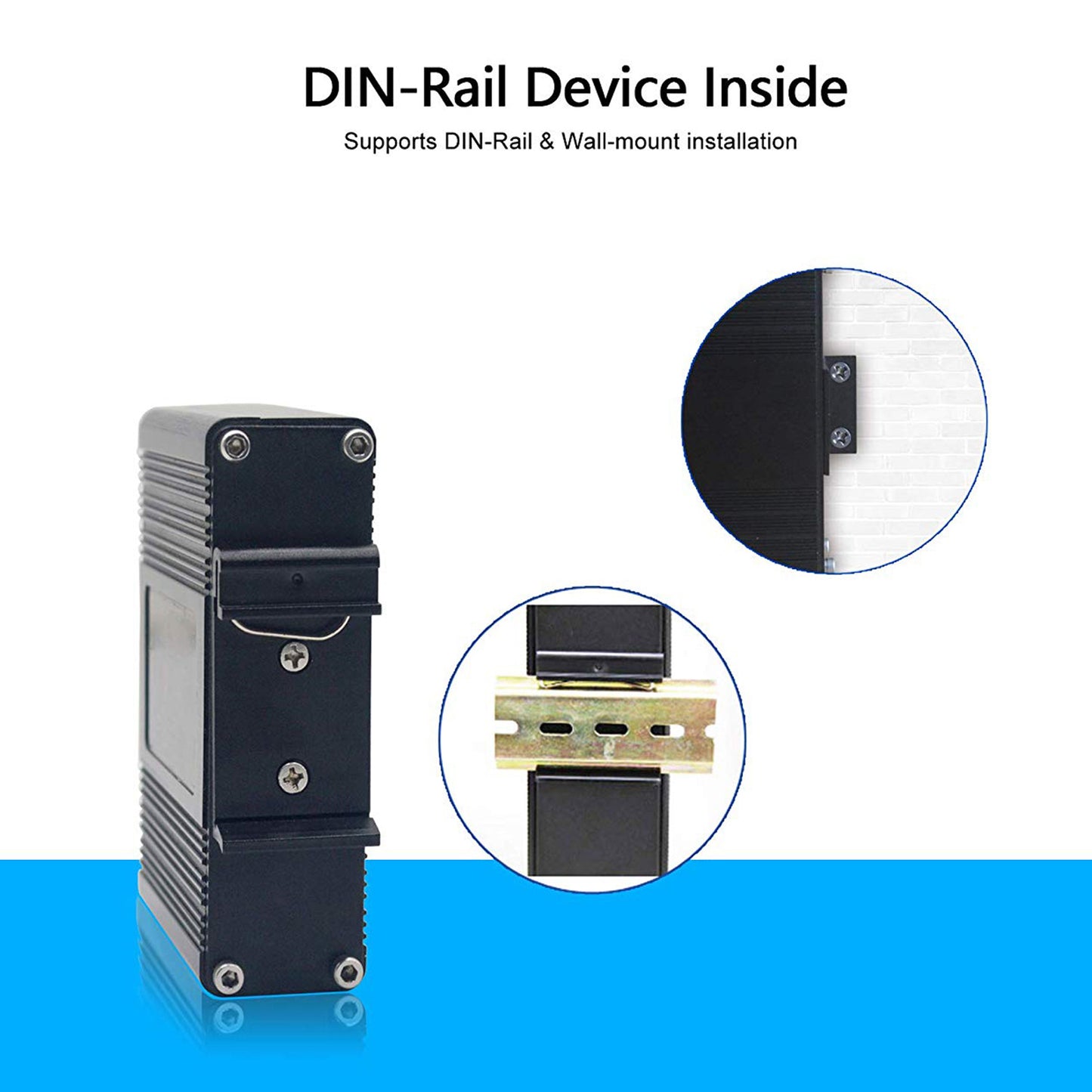

12-48VDC input, 48VDC power supply, DIN-Rail bracket installed, wall mount bracket is included
-
Environmentally hardened -40°C to 80°C, (-40°F to 176°F) operating temperature
Technical Indexes:
|
Ethernet |
|
|
Standards: |
IEEE802.3af Power over Ethernet |
|
IEEE802.3at Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Connector: |
2x RJ45 |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Input Power: |
48~57VDC (Terminal Block) |
|
Power Consumption: |
36W Max. |
|
PoE: |
|
|
Standard: |
IEEE802.3at |
|
Port: |
RJ45 |
|
Max. Power per Port: |
30W Max per port (Alternative B Mode) |
|
LED Indicators: |
|
|
Power: |
Power Status |
|
PoE: |
PoE Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
